The Complete Guide to Industrial Spray Booths

Achieving a consistent, high-quality finish requires more than the right coating materials and application techniques. The environment in which coatings are applied has a significant role in the final result, which is why industrial spray booths are an essential part of many manufacturing and finishing operations.

Spray booths can improve coating quality and enhance the safety and efficiency of many workspaces. But what exactly are they, how do they work, and what type of system is right for your application? We cover all of this and more in our guide below.

What Is a Spray Booth Used For?

A spray booth is a controlled enclosure which is used for applying coatings such as paint, powder, lacquers, and other specialist finishes.

The main purpose of these is to properly manage the by-products of the coating process, including overspray, fumes, and airborne particles. Without proper control, these contaminants can cause various issues. For example, they can affect the quality of the finish, create a less efficient working environment, and increase maintenance requirements. As such, they’re an essential structural component for a variety of businesses that help produce consistent results.

Just some of the industries that benefit from industrial spray booths include:

• Automotive and transport
• Metal fabrication
• Manufacturing
• Aerospace
• Agricultural equipment
• Furniture and specialist finishing

Do You Need a Spray Booth for Powder Coating?

For professional powder coating operations, a powder coating booth is usually needed.

Powder coating is an electrostatic process, meaning the powder particles are given an electrical charge as they’re applied so they attract to the earthed component. This gives an excellent finish, but it also means the powder needs to be properly contained, controlled, and recovered, both for a consistent result and for safety.

A booth designed for this process captures and recovers the charged powder, reduces waste, and keeps the working environment clean. It’s also worth noting that not all powder booths are created equal: budget imports don’t always meet UK compliance requirements, and cutting corners here can be a false economy.

How Does a Spray Booth Work?

A spray booth works by using controlled airflow and filtration to remove contaminants from the coating area.

Firstly, clean air enters the booth and moves through the workspace, carrying overspray and fumes away from the product. Then, the contaminated air is captured through filters or extraction systems before being safely managed.

The way air moves through the booth is an important part of the design. Effective airflow helps prevent dust and particles from settling on freshly coated surfaces, which helps improve the finish quality and reduce defects.

Booths are generally designed around one of a few airflow patterns, including crossflow, downdraft, and semi-downdraft, which each direct air through the workspace slightly differently depending on the application and the level of finish quality required.

What Does a Spray Booth Consist Of?

The key components of a spray booth that help it to function correctly typically include:

• Ventilation systems to control airflow

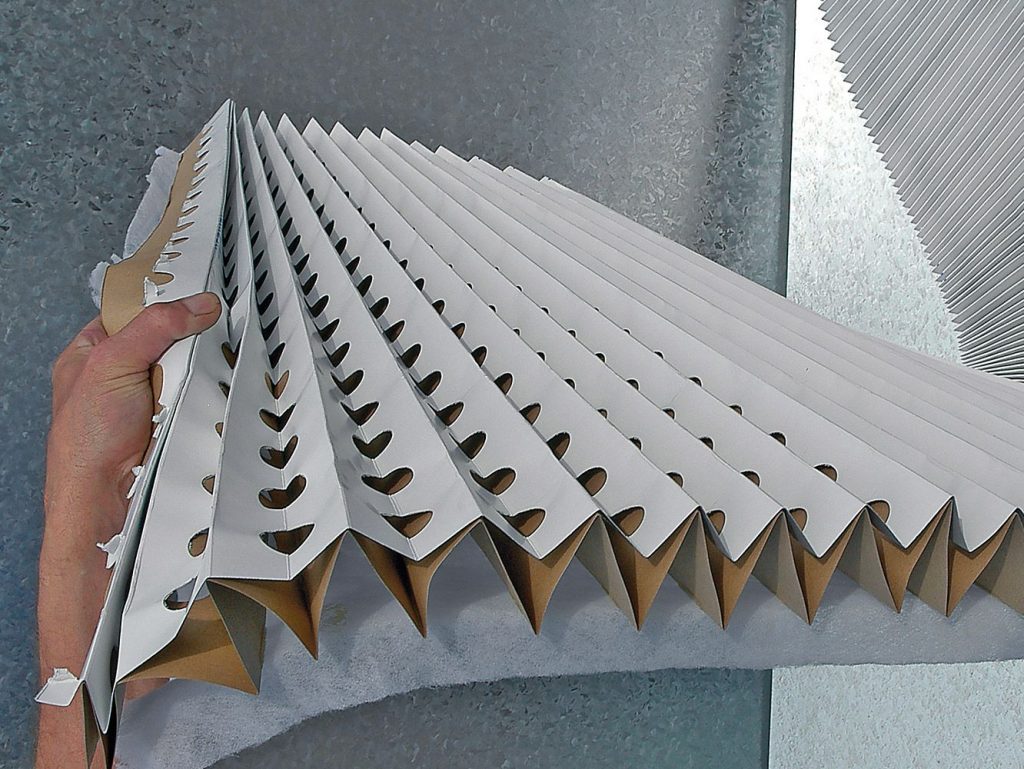

• Filters to capture overspray particles
• Extraction systems to remove fumes and contaminants
• Lighting and controls to support accurate and safe operation

These are the most common aspects, though the exact design will depend on various factors per application. For example, it can depend on the coating material being used, the size of the products being finished, and the production requirements.

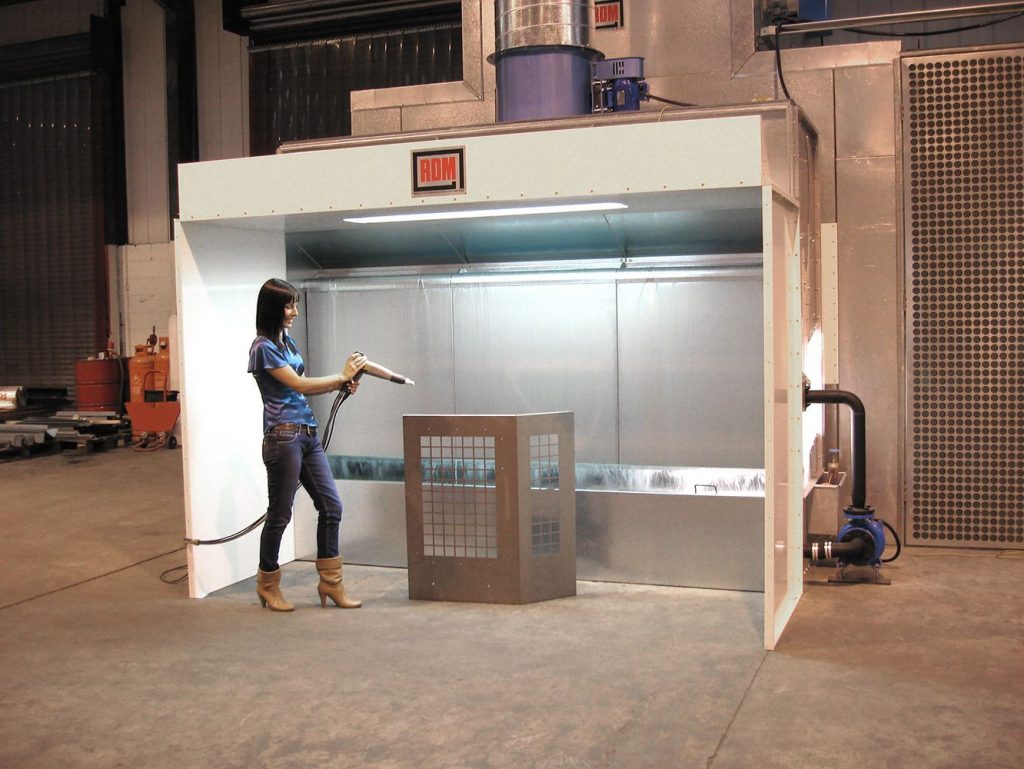

Types of Spray Booths

There are several different types of spray booths that you can find at RDM Engineering, each specifically designed for specific applications. The main types of spray booths that you can find include:

How to Choose the Right Spray Booth

With several booth types available, the right choice comes down to matching the system to your application. If you need assistance with this, our team can talk through these factors with you to help identify the most suitable booth for your specific application. Some of the key factors to consider before you make your decision include:

• Coating Type: Wet paint, powder, and specialist coatings all require different extraction and filtration approaches.
• Product Size: The booth needs to provide enough space for safe access, movement, and maintenance as per the size of your products.
• Production Volume: A booth that’s only used occasionally will have different requirements from a continuous production line.
• Overspray Levels: Higher coating volumes may require more advanced filtration or recovery systems.
• Available Space: The layout of your facility can affect whether a standalone booth, enclosed room, or compact system is the best option for you.
• Budget and Long-Term Running Costs: The initial investment is only one consideration, as you’ll need to consider how maintenance, energy use, consumables, and efficiency will fit into your long-term business expenses.

The Common Problems a Spray Booth Solves

A well-designed spray booth addresses many of the issues that can affect a finishing operation, including:

• Dust contamination: Reducing airborne particles that can affect the final finish
• Overspray build-up: Containing excess coating material and keeping surrounding areas cleaner
• Fumes and airborne contaminants: Supporting safer working conditions through effective extraction
• Inconsistent finishes: Providing a more controlled environment for repeatable results

Getting the right booth in place helps eliminate these issues at the source, rather than trying to manage them afterwards.

Spray Booth Compliance and Safety

Spray booths also play an important role in helping businesses meet their compliance and safety obligations, including COSHH, ATEX, and HSE requirements. Our booths are designed with these standards in mind, giving you confidence that your finishing process supports a safe and compliant working environment.

The Benefits of a Properly Specified Spray Booth

A well-designed industrial spray booth can provide a range of benefits, including:

• Improved finish quality: Controlled airflow and cleaner application conditions help to achieve smoother, more consistent coatings.
• A cleaner working environment: Effective extraction helps control overspray, dust, and airborne contaminants.
• Improved operator safety: Correctly designed extraction systems help to manage fumes and particles created during spraying.
• Reduced rework and waste: More consistent application helps minimise defects, rejected parts, and unnecessary coating use.
• More repeatable results: A controlled spraying environment makes it easier to achieve consistent finishes across multiple components.

End-to-End Industrial Spray Booth Solutions at RDM Engineering

With over 70 years of experience in industrial finishing systems, we work with businesses across a wide range of sectors to deliver practical, reliable engineering solutions. Every one of our projects begins with thoroughly understanding our clients’ application, production goals, and site requirements before developing a custom-built system in-house that perfectly meets your requirements.

Whether you need a standalone spray booth or a complete finishing line, our expert team can support every stage of the process, from initial design and choosing your most suitable type of booth through to installation and ongoing support.

To find out more about the bespoke, high-quality industrial spray booth products that we offer, contact us today. A member of our team will be happy to discuss your ideal solution with you.
