RDM are also able to offer top quality USED EQUIPMENT, all backed by a comprehensive warranty. We usually only offer RDM manufactured plant, but also supply used equipment by other reputable. manufacturers. We are happy to consider part exchange to Customers purchasing new plant.

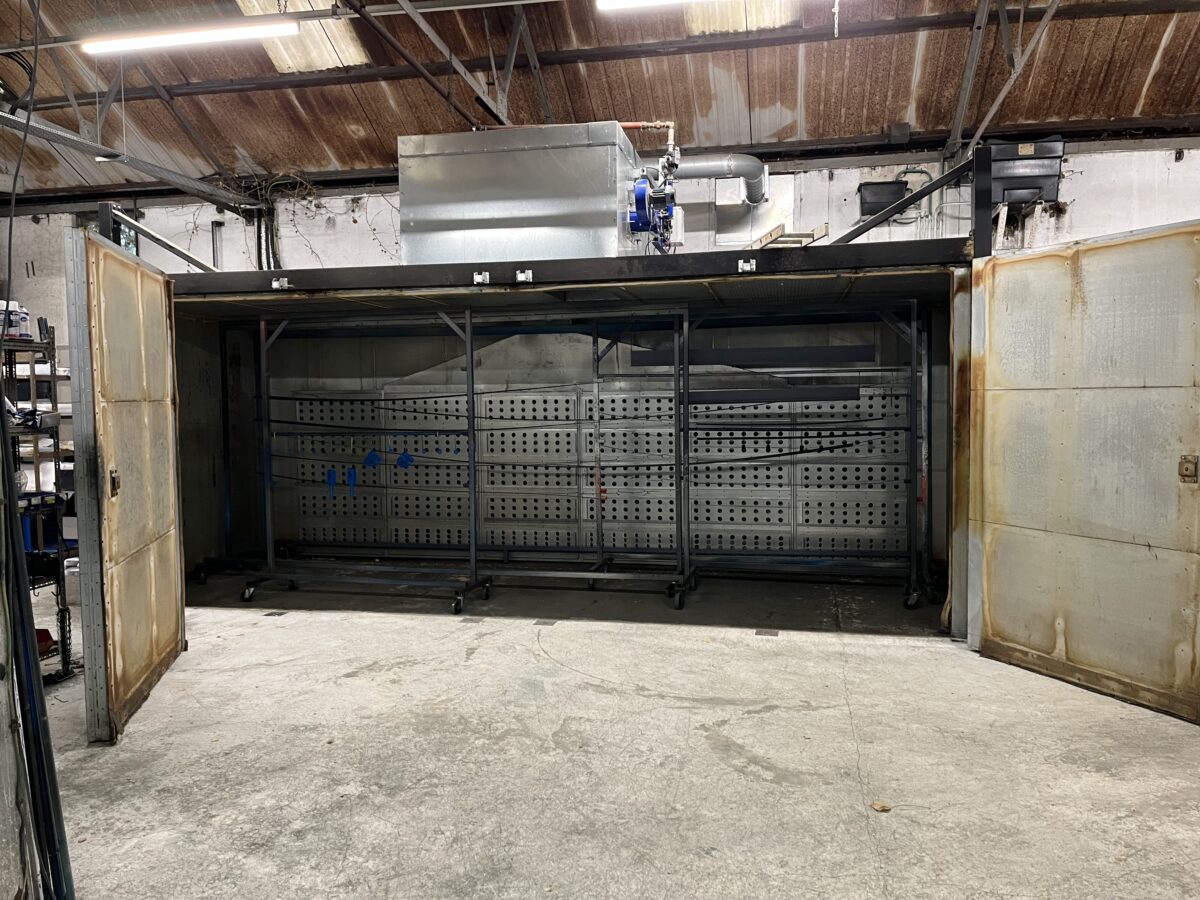

USED RDM 'Modulair' Forced Fan Air Recirculation type Box Oven. Built in 2017.
Serial No. SOP64696 Please download a drawing of this Oven on the right !
Unusual 'WIDE DOOR' Layout for easy loading !
Internal useable dimensions 2.0 metres deep, 6.0 metres wide, 2.4 metres high.
The Oven is adjustable to 225 degrees centigrade.
Specification

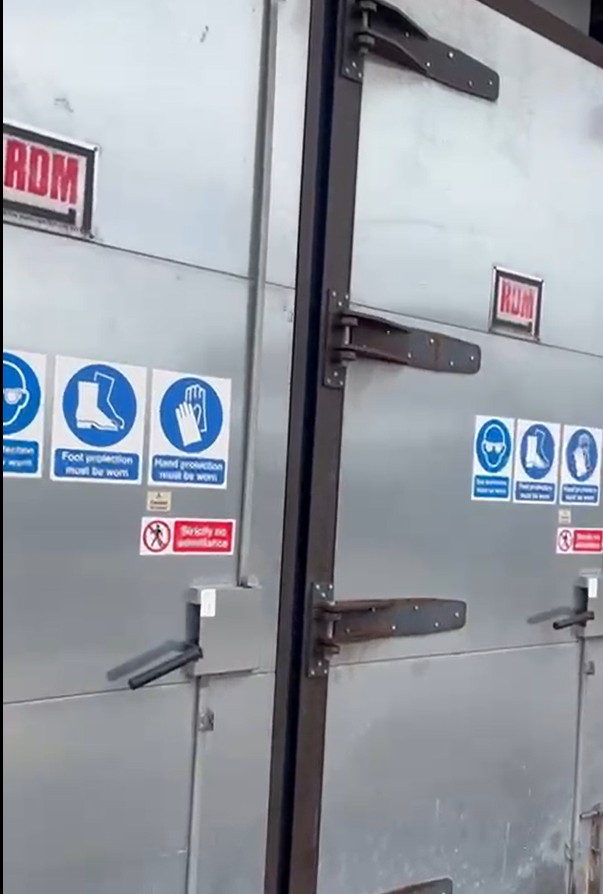

Access is via 1 pair of Double Folding, robust, fully insulated doors, forming an aperture 6.0 metres wide x 2.4 metres tall.
Doors are of double skin galvanised steel construction with 100mm thick mineral wool filling.
Heating is via a smooth and fully integrated roof mounted Heater Box. Forced draught direct Natural gas fired two stage package burner.
Total heater rating 240.0kW/hour (Peak output at maximum load)

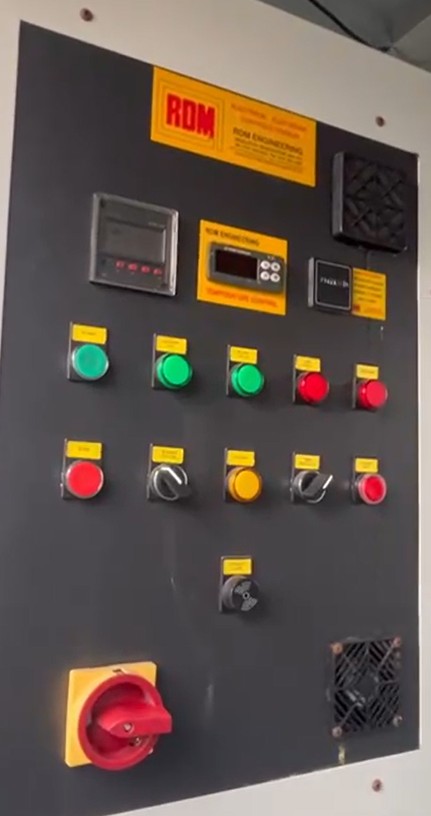

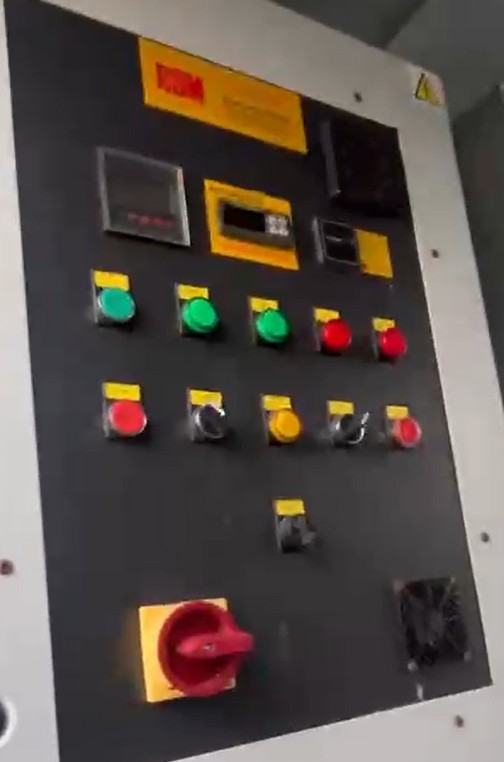

Control Panel houses, mains isolator, all motor and control fuses, start up purge and shut down cool timers, motor control gear and relays, full motor and heater safety interlock system, front mounted press buttons, remote burner lockout indicator and reset button, fan, burner, fan pressure switch fault, cooling mode, timer mode and run status indicator lights.
The panel incorporates a fully programmable, digital temperature controller with numerical displays and a remote 'K' type thermocouple mounted in an ideal position within the Oven. The Temperature is operator adjusted via a simple Press Button Command System and is adjustable in 1o centigrade increments.

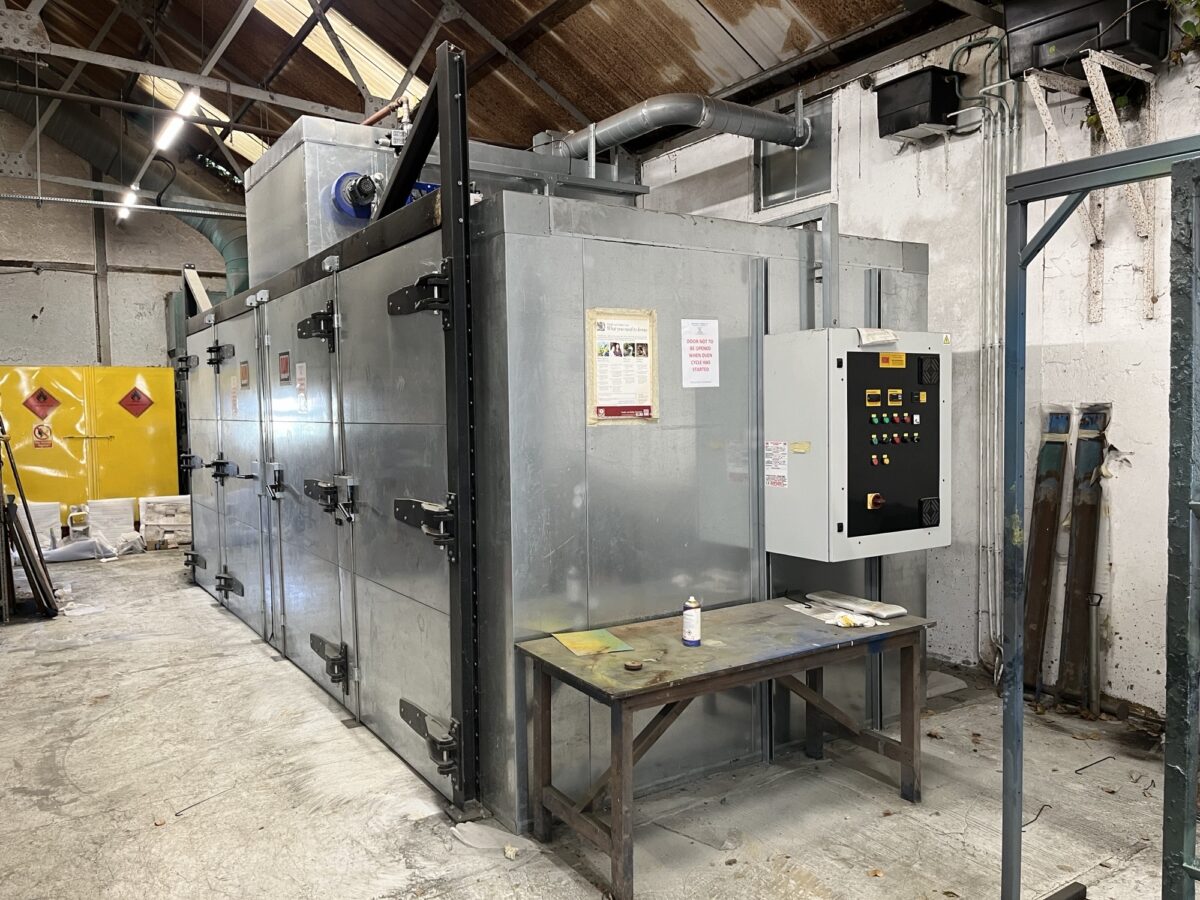

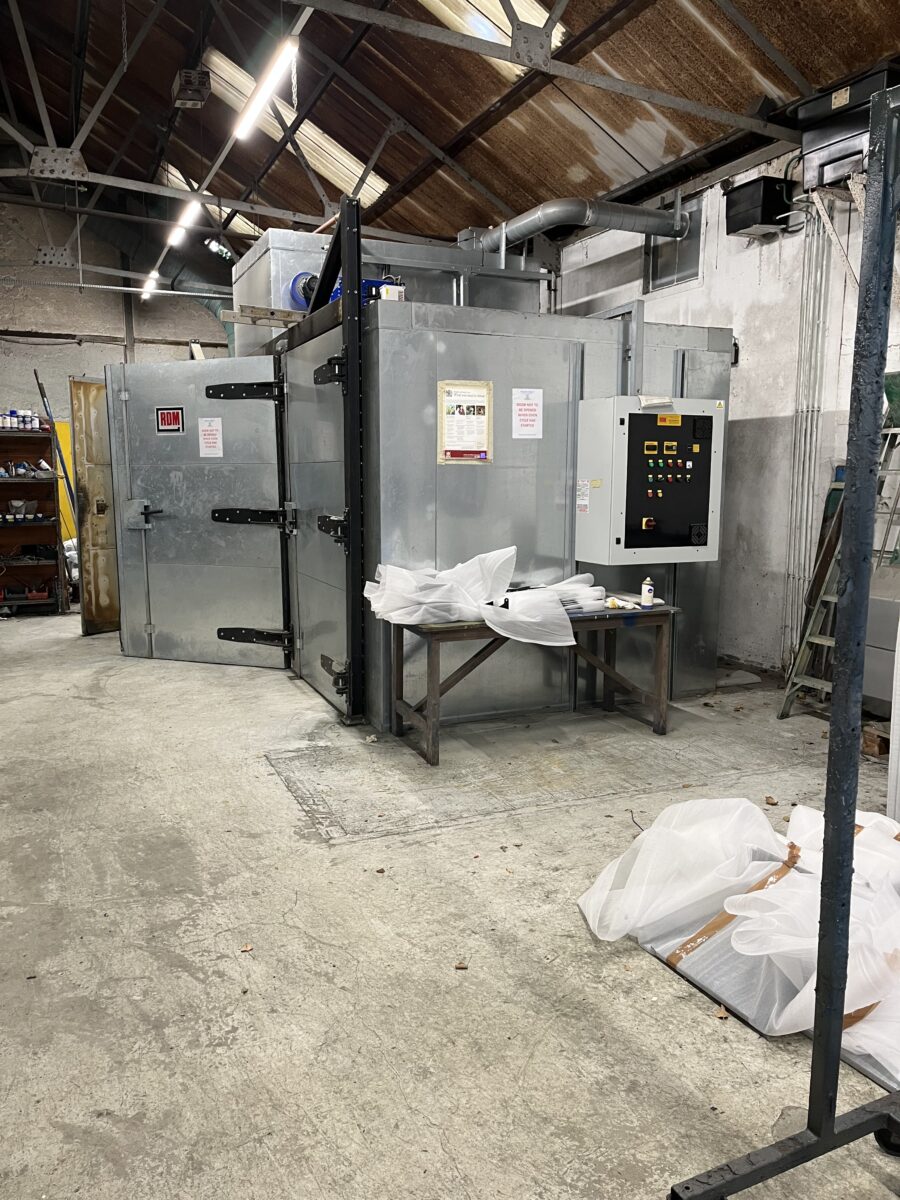

RDM 'Modulair' Forced Fan Air Recirculation type Box Oven.
Internal useable dimensions 1.5 metres deep, 5.0 metres wide, 3.3 metres high.
Serial No. 62759
Great Condition GAS HEATED Box Oven with triple doors and interior racking.
Specification
Internal useable dimensions 1.5 metres deep, 5.0 metres wide, 3.3 metres high
Download a PDF drawing of Oven 62759 on the right.
RARE ! A complete Powder Coating Extraction System with Powder Cyclone and Powered Afterfilter.
Model RC900 Unpowered Cyclone
Model RA1200 Bag Type Shaker Afterfilter
Specification
Motor Rating is 22kw
Extraction Rating is 7800cfm (220m3/minute)
A super little Gas Fired Oven, good for 220c.
Oven was built by RDM in 2004 and works perfectly. Warranty 6 months.
Specification
Oven has inner dimensions 1200mm high, 1000mm deep and 2000mm wide. 60kw Gas Burner, Max 220c.

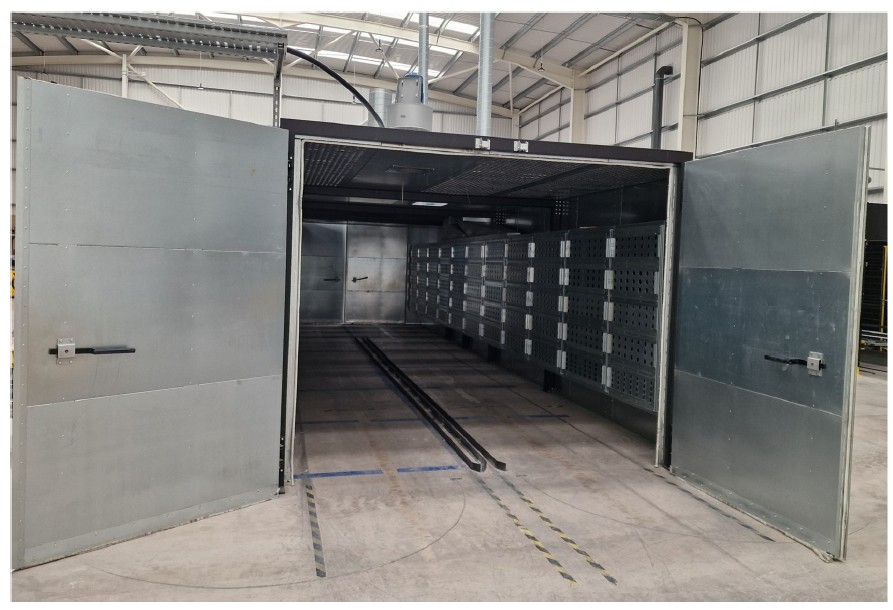

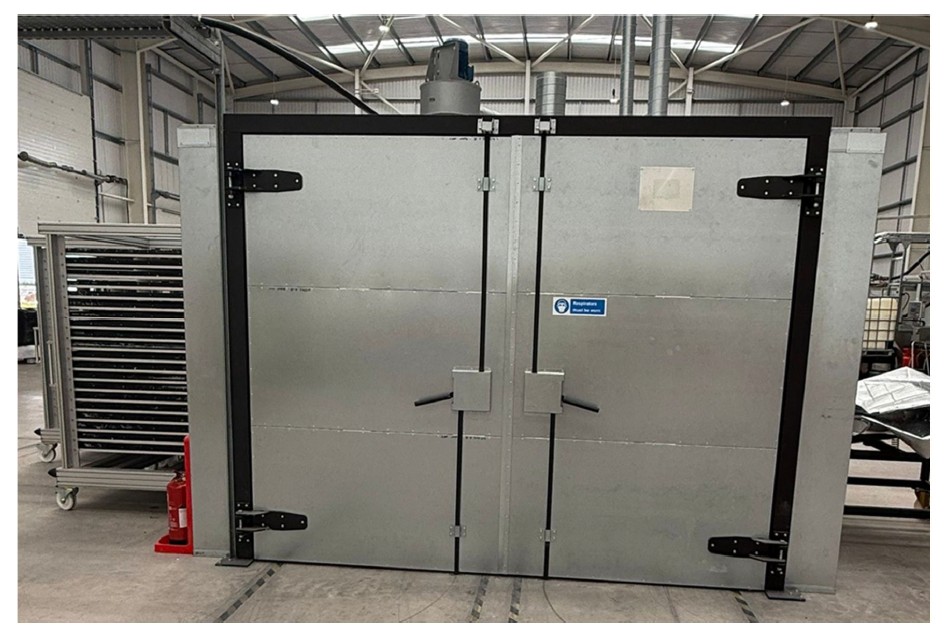

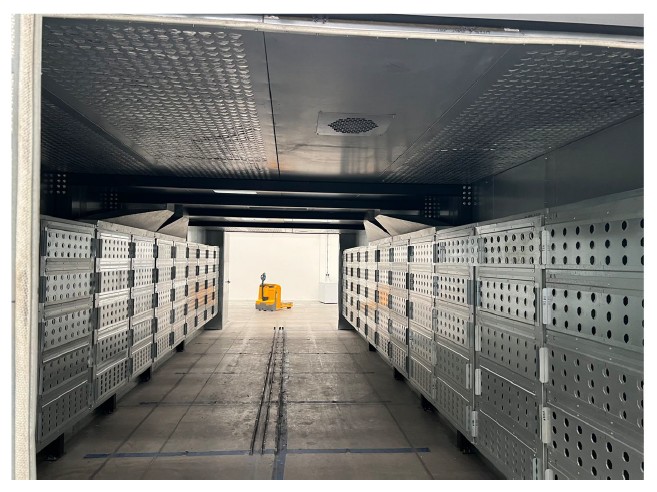

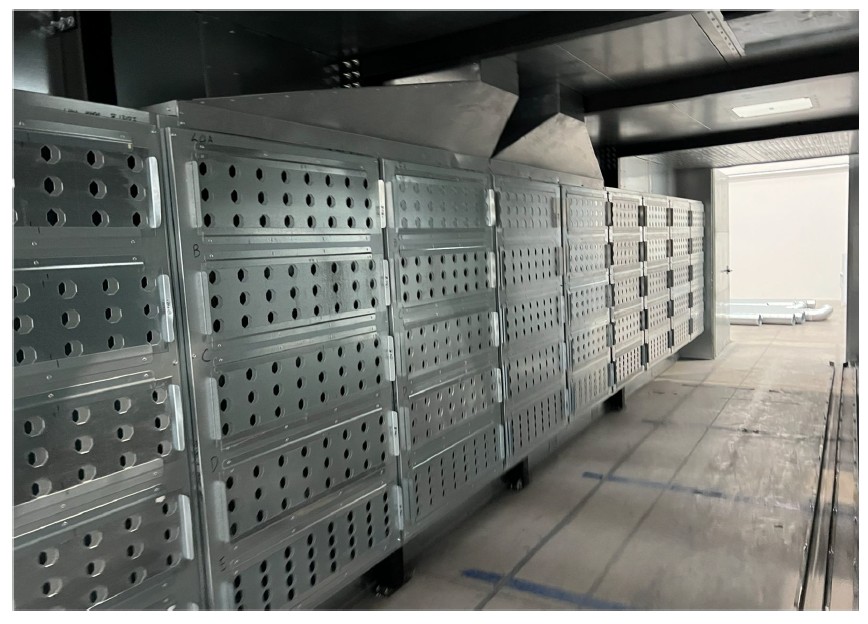

Completely superb Large Electric Oven Rated to 150c.
This fantastic Oven was built in 2023 and has done very little work. Warranty 12 Months.
The Oven is of double skinned galvanised steel construction with a 50mm thick 'Rockwool' insulation filling. The inner and outer skins are connected with a minimum amount of through steelwork to prevent heat transfer and heat loss.
Entry would be dual sets of hinged doors providing a clear aperture size of 3.0 metres wide x 2.0 metres tall.
Heating is via a roof mounted Heater Box. Re-Circulation air would be drawn off at high level, pass over the 3 phase wire wound plug type electric element pack, wired in 2 sequential timed stages by TWIN high temperature integrated plug type centrifugal air recirculation fans.
Total heater rating 70 Kw/hour (Peak output at maximum load)
Recirculation fan rating 453 m3/minute
Fume fans rating 84 m3/minute
Control is by our unique and sophisticated, in-house developed, RDM LOGIKoC Programmable Logic Control system.
The Oven is adjustable between 30o centigrade and 150o centigrade.
Please note:
That these prices generally exclude for Delivery, off loading or locating on site (for which purpose a Fork Lift Truck may be required) or Installation (unless stated in the description), but we would be pleased to quote for these items upon request.
Where we include installation, the price includes assembly of the equipment on a suitable, smooth, level and clear Site, the supply and fitting of Ductwork to suit a roof height of up to 6 metres. We include for partial Electrical interwiring from the locally mounted Control Panel up to the Motors, Burners/Heaters, Probes and Pressure Switches etc. Wiring is to Current IEE Standards. The price includes commissioning, testing and providing Certification of Performance. Please note our specific exclusions with regard to builders works and service connections (details on request).
All Prices are Nett, In GB Pounds, V.A.T. charged extra as applicable.
We are pleased to quote for overseas Installation.
All plant is sold strictly subject to availability.
